9
é un marchio registrato della EJ
EJ registered mark
O
A
MODELEDEPOSE
BREVETE
H
EN124-F900
C
DESCRIZIONE
Dispositivo di chiusura in ghisa a grafite sferoidale,
secondo ISO 1083 (grado 500 - 7) e EN 1563, conforme
alla classe F 900 della norma EN 124 : 1994, forza di
controllo: 900 kN.
CARATTERISTICHE
Coperchio di ingombro Ø 650 mm. munito di una guarni-
zione elastica in policloroprene antirumore ed antivibra-
zione; telaio quadrato di ingombro 850x850 mm.(telaio
circolare Ø 850 mm.) di altezza 100 mm. di apertura
libera Ø 600 mm. equipaggiato di 4 fori per fissaggio sulla
cameretta se necessario.
RIVESTIMENTO
Vernice idrosolubile nera.
CERTIFICAZIONE PRODOTTO
NF
LUOGO DI INSTALLAZIONE
Gruppo 6 norma EN 124 : 1994 e gruppi inferiori.
OPZIONI
- Fori di aerazione: precisare “VENT” nel ref.
- Marcature: Consultateci
DUO FR 850
600
100
650
67,67
100
telaio circolare -
circular frame
DUO FC 850
600
100
650
67,67
109
telaio quadrato -
square frame

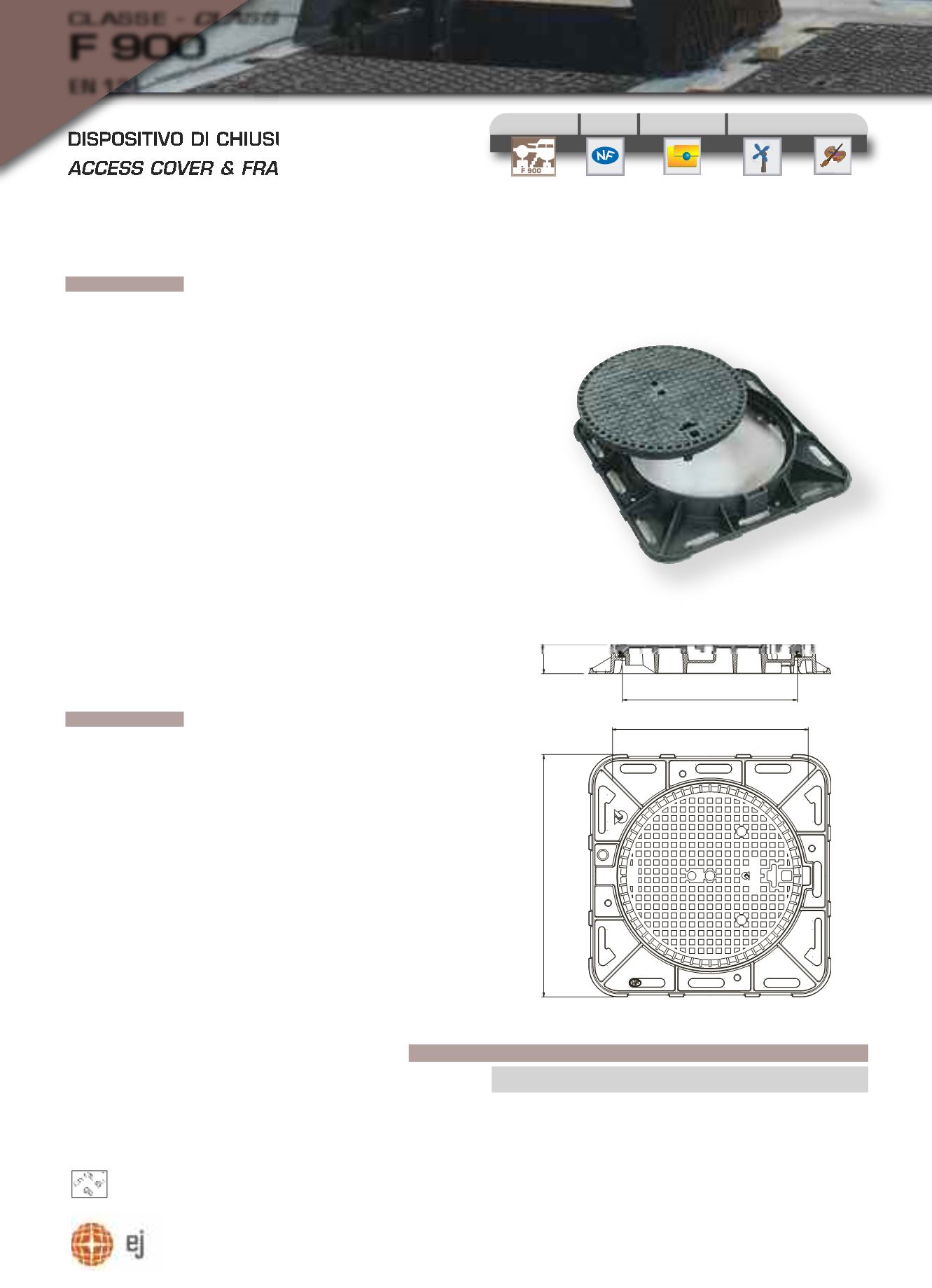

DISPOSITIVO DI CHIUSURA
ACCESS COVER & FRAME
DUO
TM
F
CLASSE -
CLASS
F 900
EN 124
certificazione
certification
luogo di installazione
place of installation
guarnizione
elastica
cushioning
insert
marcatura
personalizzata-
customised
badging
opzioni - options
Gruppo - Group 6
&
gruppi inferiori
lower groups
DESCRIPTION
Access cover and frame manufactured from spheroidal
graphite cast in accordance with standards ISO 1083
(grade 500 - 7) and EN 1563.
Load classification F900 to EN 124 : 1994.
CHARACTERISTICS
Solid top access cover with 650 mm overall flange. Cover
incorporates a wide flat chloroprene rubber cushioning
insert to prevent noise and vibration (non - rock). Square
frame. 850 x 850 mm overall flange (circular frame: ø
850), 100 mm depth and ø 600 mm clear opening pro-
vided with 4 anchoring holes that can be used to fix the
frame to brickwork as necessary.
COATING
Non - toxic water based black paint.
PRODUCT CERTIFICATION
NF
PLACE OF INSTALLATION
Group 6: EN 124 - 1994 standard and lower groups.
OPTIONS
- Ventilation :“VENT” to be added to reference
- Badging: please enquire
caratteristiche
characteristics
Ref.
Dimensioni -
Dimensions
(mm)
peso -
weight
(kg)
A x A’
O x O’
C x C’
coperchio
ø A ø O
h
ø C’
cover
tot.
fori di
ventilazione
ventilated
cover
